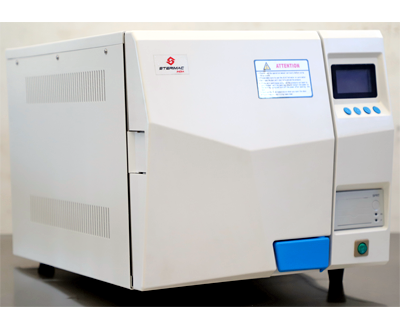

RAPID / FLASH STERILIZER

RAPID / FLASH STERILIZER

foto

Application

  • Multispeciality Hospitals - Ophthalmic, Orthopaedic, Cardiac etc.

    • Automation

  • Control and Printing : Fully Automatic PLC control system provides on-line documentation through in-built printer
  • SCADA : Provides the option to link PC to the autoclave for remote control and monitoring. Records in three formats (Detailed Report, Summary, Graph) can be stored in the PC and reprinted as and when required (Optional).

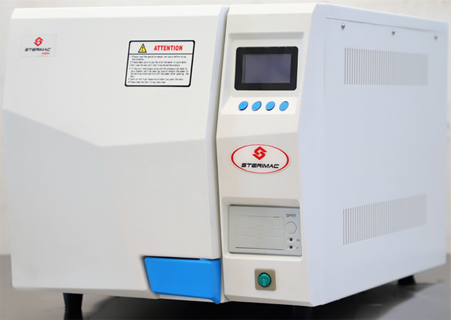

    • Flash Autoclave

    foto

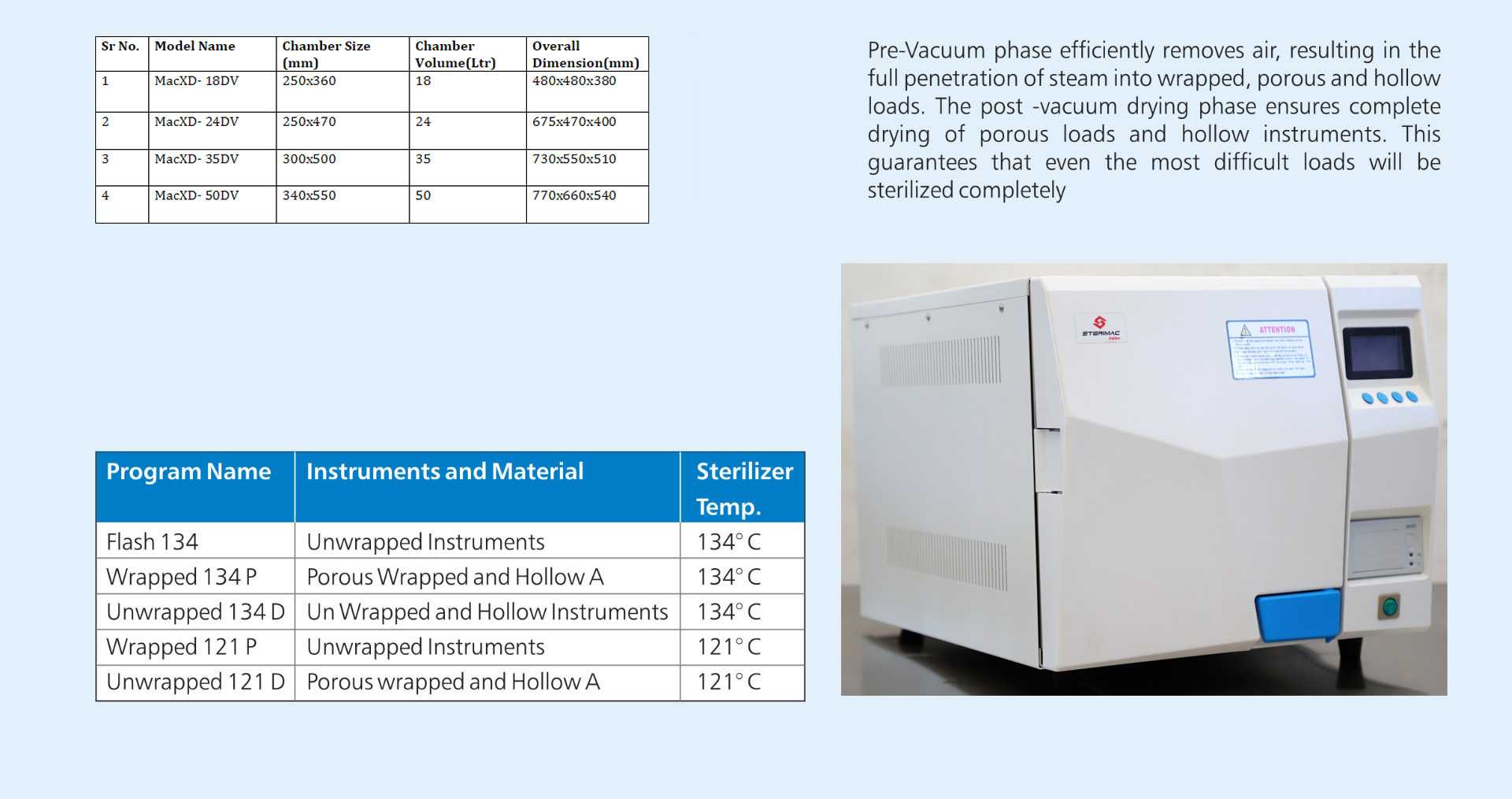

    Technical Specifications

  • Chamber safety valve and heat resistants silicon Gasket provided.
  • Chamber tested hydraulically at 3kg/cm2.
  • Chamber and door fabricated out of SS 316/304 grade steel.
  • Power supply is 220 V AC/50Hz. • Digital data back-up facility (Optional).
  • Audio alarm & visual display error messages on screen
  • Supervisory access codes and password protection for prevention of unauthorized access.
  • Temperature uniformly and accurately maintained throughout the chamber to within ± 1 °C of the set sterilization temperature.

    • Safety

  • A cycle will not start unless the door is properly locked.
  • Safety valve adjusted at 3kg/cm2.
  • During cycle PLC constantly monitor pressure through pressure transmitter to assure chamber with in safe pressure (less than 3kg/cm2).
  • Alarm on long delay in pre sterile phase.
  • Alarm on long delay in vacuum.
  • Alarm on long delay in exhaust phase.
  • Alarm on long delay in Air brake phase.
    • Download Brochure
