Descriptions

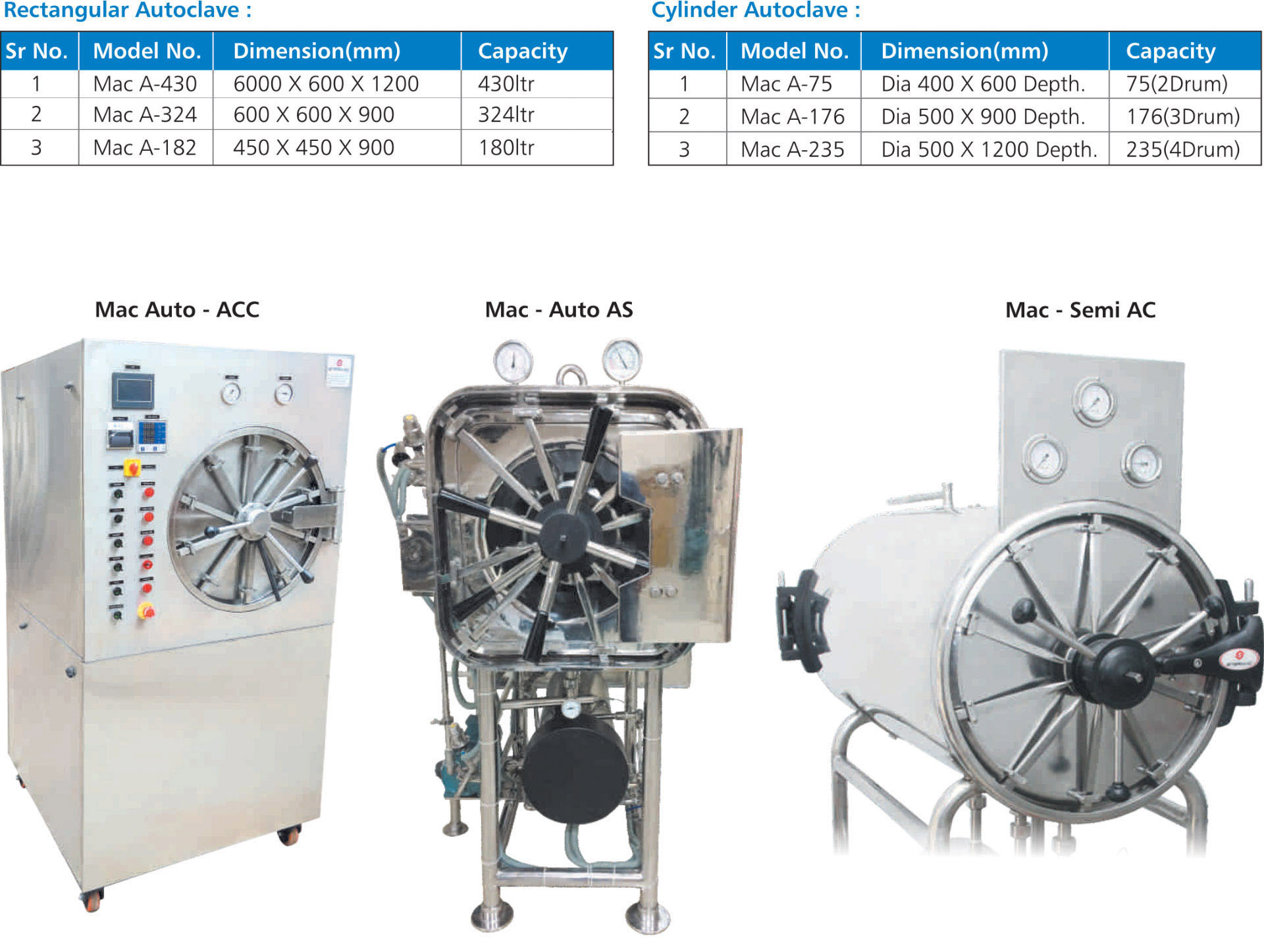

Fully Automatic Horizontal Cylindrical High Speed High Pressure Medical Sterilizers
Triple walled unit, the sterilizer consists of a chamber with steam jacket and outer insulation cover
Door: Double Door hinge type with radial locking system
Double Door Sterilizer is closed from both ends with full size SS Panel. It consists of Master-Slave Touch Screen HMI, Indication Lights, Emergency Switch, Pressure Gauges, Alarm
Door Gasket: Expandable type silicone rubber gasket, withstands up to 140°C
Standard features: Dial thermometer, pressure gauges for steam generator and jacket, compound gauge for chamber, sight glass, stainless steel perforated tray and hook, expandable silicone gasket
Material of Construction – Steam Sterilizer Chamber, Jacket, Door, Radial Locking Arm, Outer Insulation Cover, Pipelines, Steam Generator all made of heavy gauge SS 304/316/316L grade Stainless Steel
Working Pressure: 1.2 kgf/cm² & 2.1 kgf/cm²
Working Temperature: 121°C / 134°C
Power Supply: 440 V, 3 Phase, 50 Hz AC Supply
Safety devices: Pressure switch, safety valves, self-locking of door when chamber is under pressure, vacuum breaker, low water level cut-off
Safety features: Door locking facility, Low water protection system, Pressure cut off facility and other necessary safety features
Hydrostatic test : Hydraulically tested chamber up to 2 times the working pressure and jacket up to 2.5 times the working pressure
Standards: BIS – IS:3829 Latest Edition with ISI mark for High Speed Steam Sterilizers
Documentation: User manual, Warranty Certificate, Hydraulic Test Certificate, Calibration Certificate.
Vent filters with automatic sterilization in place and attachments for water-Intrusion-Test.
Option of jacket cooling for liquid loads.
Electrically heat steam generator for Laboratories & Research Intuitions.
Attachments for steam quality testing as per EN285 norms.
Facility for terminal sterilization of glass containers with atomized water spray with air over pressure and jacket cooling.
Option for vacuum least testing of sealed ampoules.
Sanitary design for piping & valves with dead leg (1.50 and slope) 2%.
Comprehensive test programs, Vacuum Leak Test, Bowie & Dick Test & Pressure Leak Test to safeguard your process and machine.
