MAC A-ETO

MAC A-ETO

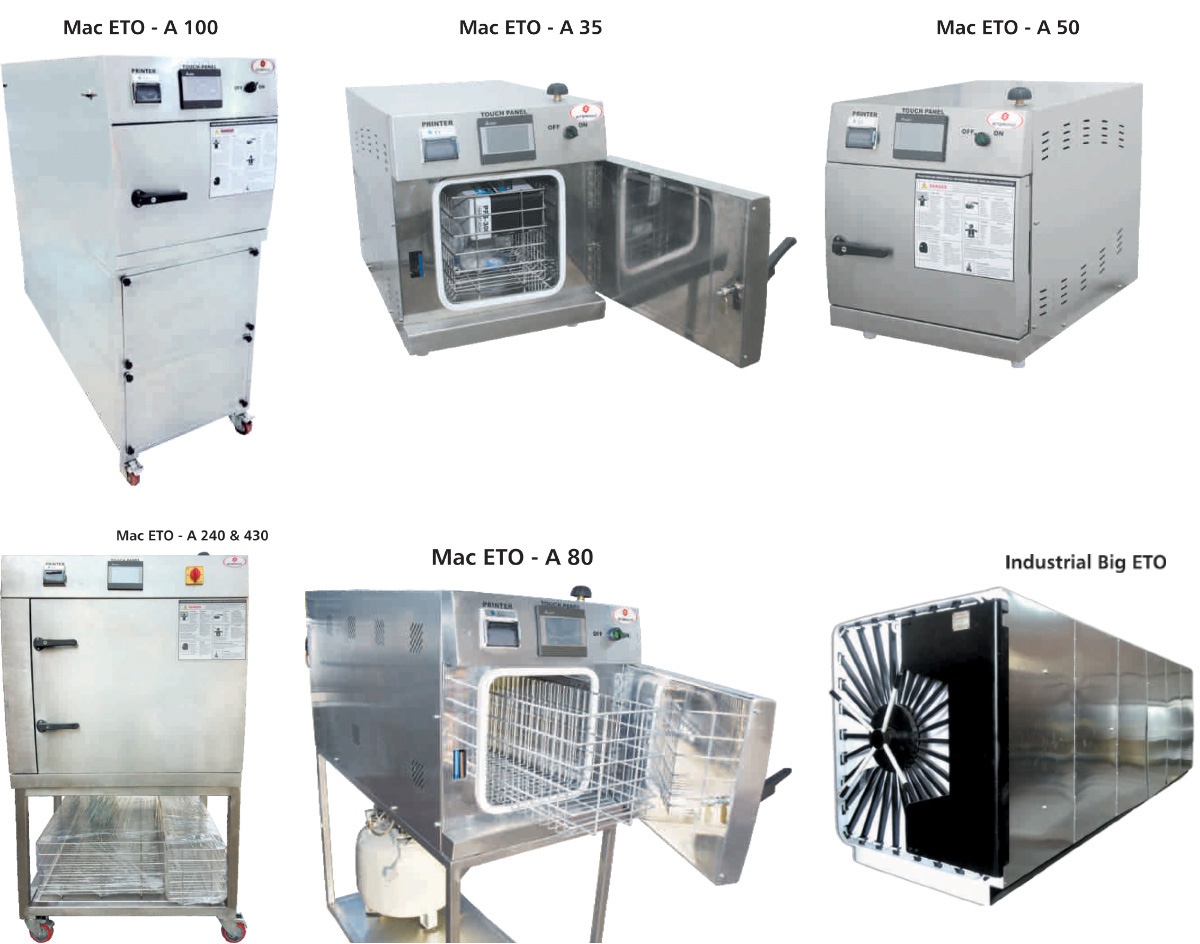

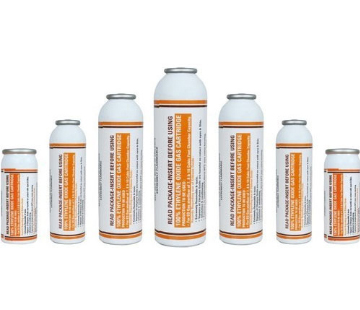

Sterimac ethylene oxide gas sterilizers are designed to be used with ethylene oxide gas cartridge to provide a safe and effective low temperature sterilization process for hospitals ,Cath labs, Medical institutions, eye specialists, ortho specialists, General Surgery centers,gynec care units ,cardio Thoracic surgeon, interventional cardiologists, plastic /Cosmetic surgeons, Neuro Surgeons, Research Centers, Specialty Laboratories ,Pharmaceuticals applications.
To achieve the objective of delivering quality healthcare at an affordable price and to guarantee a high level of infection control, sterilization of critical medical devices is of paramount importance.
EO Gas Sterilizer plays an important role to achieve sterilization at low temperature.
The system is fully automatic and operated by a PLC to ensure high process accuracy and repeatability with focus on the safety of the operator and the environment. A Special Steam generator is provided to humidify the load to ensure that the correct RH is maintained for most effective sterilization. The inbuilt vacuum system which does not require any water generates a deep vacuum so critical to the processing. The system also includes a heating system to accurately maintain the desired temperature, an important parameters for process lethality. A wide range of handling accessories are included to provide the user high flexibility without compromising on the space availability.

foto

Applications

  • Fine surgical instruments.
  • Fiberoptic Endoscope surgical telescope and other optical medical equipment.
  • Thermo-labile products.
  • Surgical threads.
  • Surgical Staplers/Staples, sutures, sharps.
  • Orthopedic implants.
  • Cardiac domes
  • Catheters
  • foto

    Descriptions

  • Cabinet type Sterilizer with elegant look, less space requirement for installation.
  • The machine is constructed with heavy duty Stainless steel 304/316.
  • Specially designed for uniform temperature in the chamber.
  • Complete Process will be in negative Pressure.
  • Automatic vacuum.
  • Automatic Humidification.
  • Temp. Control for uniform Temperature.
  • Automatic gas injection.
  • Process phase indicator during the Process
  • Automatic Degassing & Aeration
  • Online Printing (Time,Temp,Pressure,RH,Phase indication)
  • Usb data storage / 21cfr part 11scada for data store and graph (optional). On Special request the sterilizer can be supplied with validation and calibration documents also with:-
  • Design Qualification Report(DQ)
  • Operating Qualification Report(OQ)
  • Installation Qualification Report(IQ)
